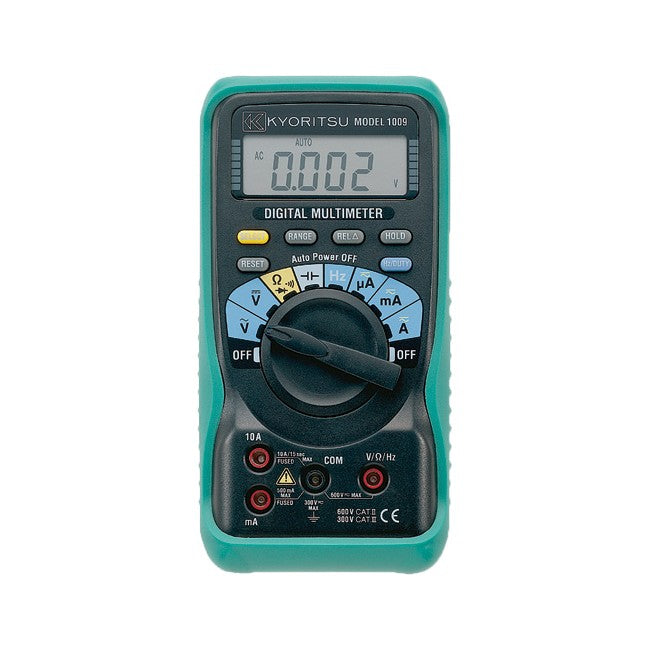

1009KY CAT.3 RATED DIGITAL MULTIMETER KYORITSU KYORITSU KEW1009

1009 Kyoritsu Compact Digital Multimeter

High performance and wide range digital multimeter from the world class manufacturer, Kyoritsu.

Included accessories:

• Test leads, fuse, batteries, carry case, manual.

FEATURES:

• Display : 4000 counts.
• Auto range and manual range selector provided. (with range hold feature)
• Diode test feature
• Capacitance test feature
• Relative measurement
• Resistance range provides audible continuity test
• Automatically turns power off in about 30 minutes to conserve battery life
• Direct current measurement up to 10A AC and DC
• Designed to international safety standard IEC61010-1 CAT.III 300V.


SPECIFICATIONS:

DC V	400mV/4/40/400/600V(Input Impedance 10MΩ) 4dgt(400mV/4/40/400V) 4dgt(600V)
AC V	400mV/4/40/400/600V(Input Impedance 10MΩ) 4dgt(20~400mV) 4dgt(4/40V) 4dgt(400/600V)
DC A	400/4000µA/40/400mA/4/10A 4dgt(400/4000µA) 4dgt(40/400mA) 4dgt(4/10A)
AC A	400/4000µA/40/400mA/4/10A 4dgt(400/4000µA) 4dgt(40/400mA/4/10A)
Ω	400Ω/4/40/400kΩ/4/40MΩ 00Ω/4/40/400k&Om ega;/4MΩ) 4dgt(40MΩ)
Continuity buzzer	400Ω(Buzzer sounds below 70Ω)
Diode Test	4V Release Voltage:Approx. 0.4mA Test Current
Capacitance Test	40/400nF/4/40/100µF
Frequency	5.12/51.2/512Hz/5.12/51.2/512kHz/5.12/10MHz
DUTY	0.1~99.9% (Pulse width/Pulse period) ±2.5%±5dgt
Withstand Voltage	AC 3700V / 1min.
Standard	IEC 61010-1 CAT.III 300V IEC 61010-2-031 IEC 61326
Power Source	R6P(1.5V) × 2
Dimensions	155(L) × 75(W) × 33(D)mm
Weight	Approx. 260g
Accessories	KTL04 (Test Lead) 8924 (0.5A/250V Ceramic Fuse)× 1built-in 8925 (10A/250V Ceramic Fuse)× 1built-in R6P× 2 Instruction Manual
