Overview

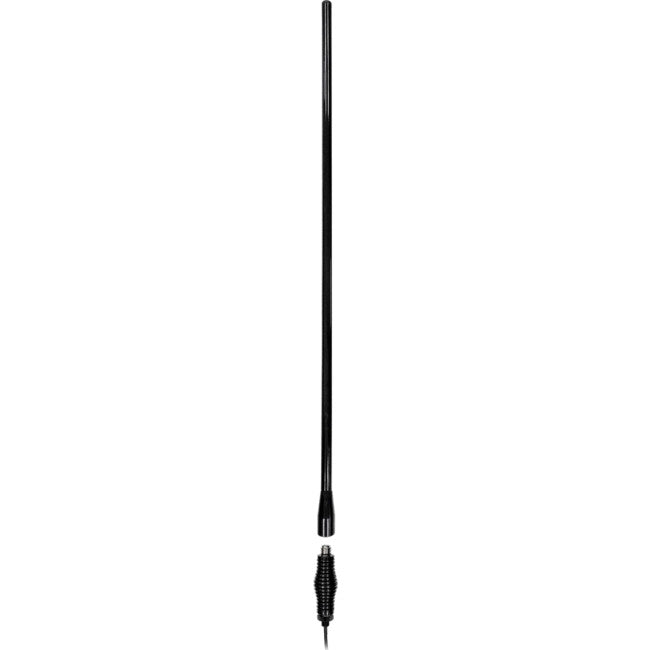

024579R 5G 7.5DB CELLULAR ANTENNA WITH REMOVABLE WHIP
Sealed removable Spring interface, Heavy Duty construction, Covering the full 5G band, 690-960MHz + 1710-2700MHz and 3.5-3.7GHz. Terminated to 5m x Low Loss Cable and SMA plug fitted. Overall length 1220mm.
Features
- Multi-Band performance
- Removable antenna
- Easy to install
- Fiberglass and thick-walled radom
- Light weight
- Plated heavy duty barrel stainless steel spring
- Designed and manufactured in Australia
specs
- Frequency
- 690 – 960 MHz Tuned Bandwidth 270 MHz
- 1710 – 2700 MHz Tuned Bandwidth 990 MHz
- 3500 – 3700 MHz Tuned Bandwidth 200 MHz Gain 7.5 dBi (690 – 960 MHz) 3 dBi (1710 – 2700 MHz) 3 dBi (3500 – 3700 MHz)
- Impedance 50 Ω
- Operating VSWR < 2:1
- Radiation Pattern Omni Directional
- E Plane 3dB Beamwidth 14 Deg @ 690-960MHz
- Length 1240 mm (includes spring assembly)
- Width Fiberglass: 16mm (0.6”) Spring: 35mm (1.4”) Weight 0.84 kg (1.8 lbs)
- Termination SMA Plug, 5m (16.4’Low Loss RG58 Cable Tail (05603)
- Construction Fibreglass Radom, Black Coated Stainless-Steel Spring and Brass Ferrule
