024578 4G CELLULAR HI GAIN ANTENNA WITH REMOVABLE WHIP BENELEC 024578

024578 4G CELLULAR HI GAIN ANTENNA WITH REMOVABLE WHIP BENELEC 024578

{tab Overview}

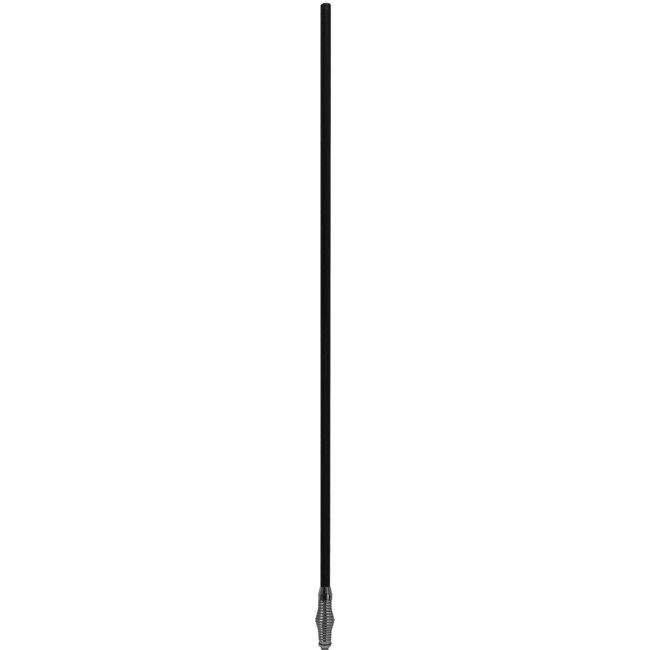

024578 4G CELLULAR HI GAIN ANTENNA WITH REMOVABLE WHIP -BENELEC

The 024578 antenna is multi-band antenna intended for use in the bands 690-960 MHz and
1710-2700 MHz.
The antenna offers high gain, is light weight and it is fully detachable from the mounting spring
by a threaded connection; this feature offers protection against theft when leaving the vehicle
unattended and provides user the ability to replace an antenna easily should it be damaged
.

Features:

  • Multi-band performance
  • 7.5dB Gain* @ 690-960 MHz.
  • 3.0dB Gain* @ 1710-2700 MHz.
  • Ground Independent.
  • Black Fibreglass and thick walled radome.
  • Light weight
  • Polished barrel Stainless Steel Spring.
  • Designed and manufactured in Australia.
  • Detachable antenna.

{tab Specs}

Frequency:


690-960 MHz Tuned Bandwidth 270 MHz: 1710-2700MHz Tuned Bandwidth 990 MHz.



*Gain:
50 O (Nominal)
<2.0:1

7.5dB* @ 690-960MHz &

3dB* @ 1710-2700 MHz

Length:
Weight:
Termination:
1170mm
365g
FME socket 5M LL195 Cable tail.

{/tabs}
