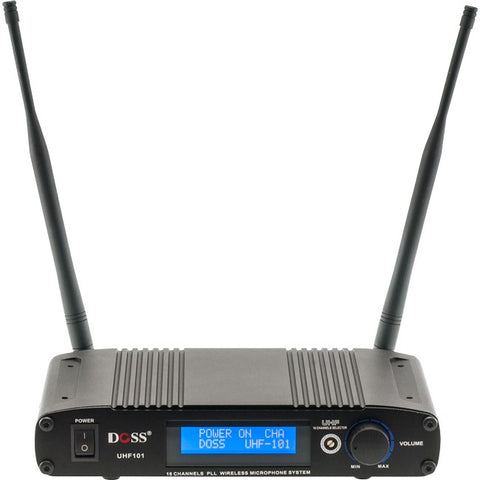

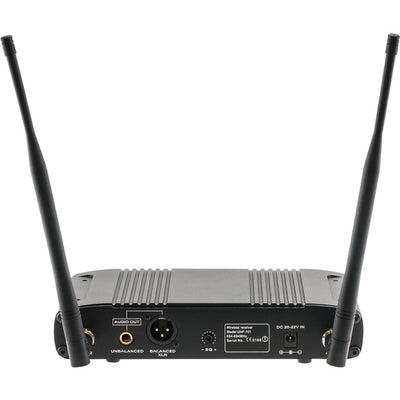

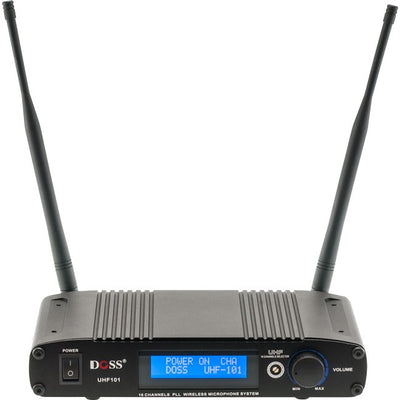

UHF101 SINGLE CHANNEL PLL WIRELESS SYSTEM 16CH RECEIVER ONLY DOSS

Sold Out $199.00

System
Carrier frequency	UHF 654-694 MHz
Stability	± 0.005% (at 25°C)
Ambient temperature	-10°C ~ +50°C
Max deviation	± 70KHz with level limiting
Dynamic range	110dB
S/N ratio	>110dB
T.H.D.	>0.5%
Pre/De-Emphasis	50µs
Squelch	Tone control and noise lock dual squelch
Frequency response	30Hz - 20KHz
Operating range	100m (approximately 300') under typical conditions
Receiver
Receiving mode	PLL Single Dual channel receiving
Sensitivity	>-107dB
Image rejection	Over 80dB
Audio output	Unbalanced, Hi Z-360mV/10K Mixer
Power requirement	AC 110-120V/220-240V (50-60Hz) External 18-22VDC
Dimensions (D x W x H)	192 x 220 x 39mm
Weight	Approx.1.5kg
