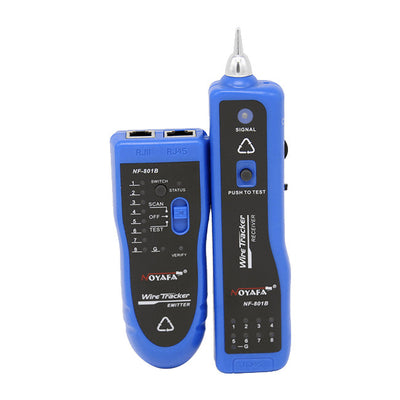

NF801B MULTIFUNCTION CABLE DETECTOR CABLE TRACER LAN TESTER BLUE NOYAFA NF-801B

NF801B MULTIFUNCTION CABLE DETECTOR CABLE TRACER LAN TESTER BLUE NOYAFA NF-801B

$59.50

Features

Quickly trace and identify cables among lots of unknowncables.
Check continuity of Lan cables.
Track the cables or wires, and diagnose the breakage.
Visible indication: pin-to-pin cable map for individualcable (not by pairs).
Low Voltage alarm function.
Earphone permits use in noisy environments.
LED light assists use in dark corners.

Specification

NF-801 Transmitter specifications
Tone frequency	200Hz
Max. distance of transmission	Up to 2 kilometers
Max. working current	Less than 10mA
Volume Regulate Function	Audio volume level control
Tone mode	2 Tones, adjustable
Compatible connectors	RJ11,RJ45
Max. signal voltage	8Vp-p
LED lights display	Wiremap, tone, tracing
Voltage protection	AC 60V/DC 42V
Battery Type	DC9.0V battery x 1pc (included)
Dimensions (LxWxD)	15 x 3.7 x 2cm
NF-801 Receiver specifications
Frequency	200kHz
The Max. working current	Less than 30mA
Earphone jack	1
Battery Type	DC9.0V x1pc (included)
Dimensions (LxWxD)	12.2 x 4.5 x 2.3cm
