Event Lighting DIM4 - 4 channel DMX Dimmer/Switch

Online Stock Only. Local pickup may be available on some items with prior arrangement. We Price Match please call in or text 04 5555 1974.

The DIM4 is a dimming pack with four output channels, each of which can be loaded up to 3A. The DIM4 can be controlled using its built-in chaser and sound control functions, or by using DMX.

Power

  • Input Voltage: 230V AC, 50 Hz
  • Fuse: 8A/250V
  • Fuse Per Channel: 3A/250V
  • Channel Output: Max. of 3A per channel, maximum of 8A total across all 4 channels
  • Connections: 4x power sockets

Control

  • Operation modes: DMX512, stand alone, sound active, local control
  • DMX channels: 1/2/4

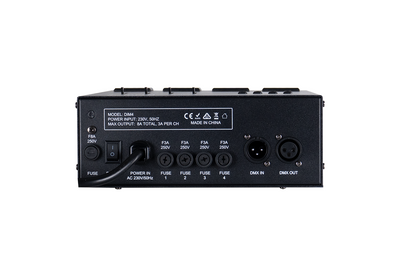

  • Interface: 3-pin XLR in/out
  • Mode: Dimmer or Switch

Housing

  • Dimensions: 220*82*275 mm
  • Weight: 3.5 kg

Download the User Manual

Warranty: 3 years
