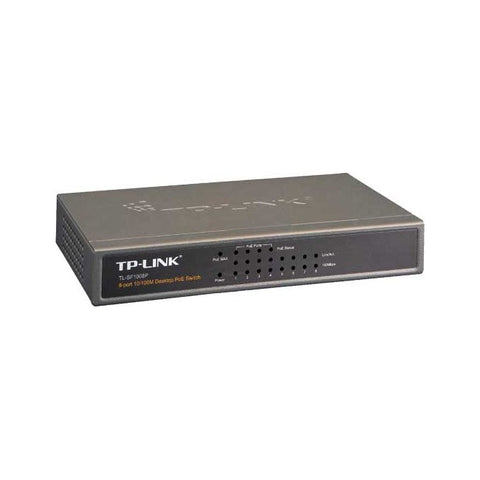

TLSF1008P 8 PORT 53W POE ETHERNET SWITCH 4X POE PORTS & STEEL CASE TP-LINK TL-SF1008P

$64.00

Overview

8-Port 10/100 Mbps Desktop Switch with 4-Port PoE+

8 × 10/100 Mbps RJ45 ports.
4 × PoE+ ports transfer data and power on individual cables.
Works with IEEE 802.3af/at compliant PDs.
Supports PoE Power up to 30W for each PoE port.
Supports PoE Power up to 66W for all PoE ports*¹.
Up to 250m data and power transmitting range under Extend Mode*².
Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application.
PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.
Fanless Design reduces power consumption and works silently in its location.
Plug and play with no configuration required.

1:PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

2: The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

Specifications

HARDWARE FEATURES	Interface	8 × 10/100 Mbps RJ45 Ports (4 × 10/100 Mbps 802.3af/at PoE+ ports) AUTO Negotiation AUTO MDI/MDIX
	Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
	Fan Quantity	Fanless
	Physical Security Lock	Yes
	External Power Supply	External Power Adapter (Output: 53.5V DC / 1.31A)
	Packet Forwarding Rate	1.1904 Mpps
	PoE Ports (RJ45)	Standard: 802.3 af/at compliant PoE Ports: Ports 1–4 Power Supply: 66W
	Mac Address Table	2K
	Jumbo Frame	2 KB
	Switching Capacity	1.6 Gbps
	Dimensions (W×D×H)	171mm × 98mm × 27mm (6.7″ × 3.9″ × 1.1″)
	Max. Power Consumption	2.27W (220V/50 Hz. no PD connected) 75.33W (220V/50 Hz. with 66W PD connected)
	Max. Heat Dissipation	7.74 BTU/h (no PD connected) 256.88 BTU/h (with 66W PD connected)
SOFTWARE FEATURES	Transmission Method	Store-And-Forward
SOFTWARE FEATURES	Advanced Functions	Extend Mode Button (Ports 1–4) Priority Mode Button (Ports 1–2) PoE Auto Recovery Button (Ports 1–4) Mac Address Auto-Learning and Auto-Aging
ENVIRONMENT	Operating Temperature	0°C~40°C (32°F~104°F)
	Storage Temperature	−40°C~70°C (−40°F~158°F)
	Operating Humidity	10~90% RH non-condensing
	Storage Humidity	5~90% RH non-condensing
GENERAL	Certification	FCC, CE, RoHS
GENERAL	Package Contents	TL-SF1008P Power Adapter Installation Guide Rubber Feet
