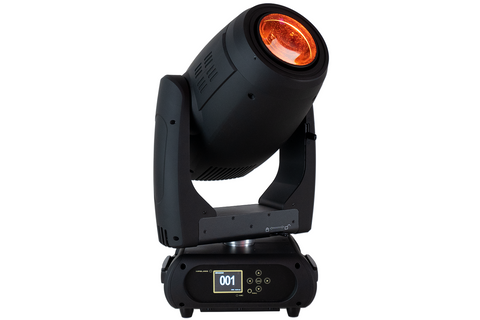

Event Lighting M1H250W - 250 W LED Hybrid Moving Head with Zoom

The M1H250W is a compact hybrid mover with 3-facet prism and frost, iris, an 8-colour wheel, fixed and interchangeable rotating gobo wheels and a beam angle of 7.5~40°.

Photometrics

• Light Source: 250 W White LED Module, 8,000 K

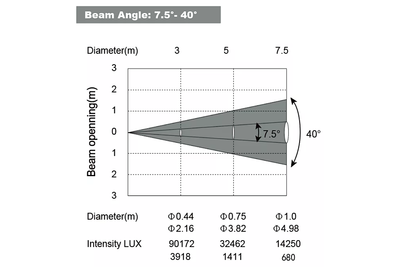

• Beam Angle: 7.5°~40°
• Output: 10,258 lumen, 90,172 lux on @ 3.0m @ 7.5°
• PWM: 1,200 Hz
• LED Lifespan: 60,000 hours

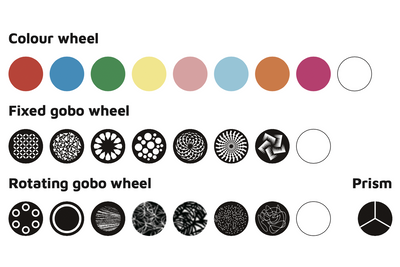

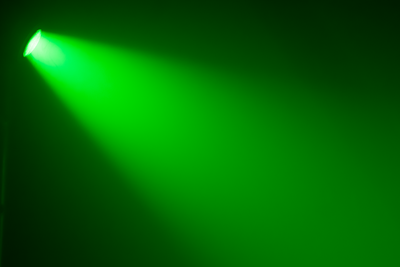

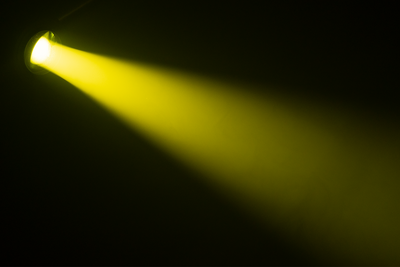

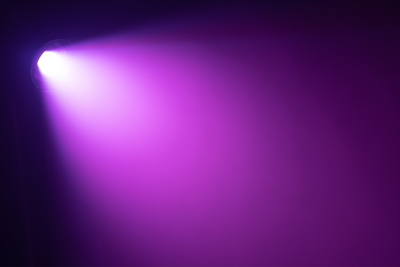

Colour

• 8 Colours + Open

Gobos

• Fixed: 1 x 7 + Open Fixed Gobo Wheel
• Rotating: 1 x 7 + Open Interchangeable Rotating Gobo Wheel (Outside Ø27mm, Inside Ø20mm).

Effects

• Dimming: 0~100%
• Strobe: 0.5~26 Hz
• Focus: Motorised
• Prism: 3-facet
• Frost: Yes
• Iris: Yes
• Zoom: Motorised, 7.5° to 40°

Movement 16 bit Auto Reposition

• Pan: 630° (4.3 sec) or 540° (3.9 sec)
• Tilt: 233°(2.2 sec)

Power

• Input Voltage: 100~240V AC, 50/60 Hz, 275 W

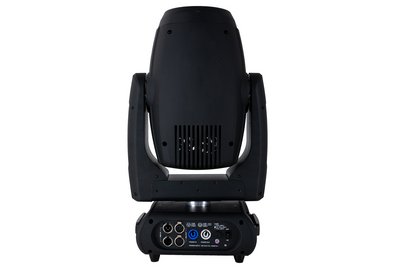

• Connection: Neutrik® PowerCON in/out

Control

• Operation Modes: DMX, auto, sound active, master/slave
• Control Protocol: DMX512, RDM (optional: W-DMX™)
• RDM: Change DMX Address, Display Flip, X/Y Reverse
• DMX Channels: 24 / 25 / 15 / 17
• Interface: 3-pin XLR, 5-pin XLR
• Display: 2.4″ colour LCD control panel with battery power.
• Software Upgrade via DMX: Yes

Housing

• Materials: ABS & Steel, matte black finish
• Cooling: Multi-sensor thermostat controlled variable speed fan
• IP rating: IP20
• Net Weight: 25 kg
• Rigging: 2x omega brackets with 1/4-turn quick locks

MISC

• Road case: MCASE1LS MCASE2VLS
