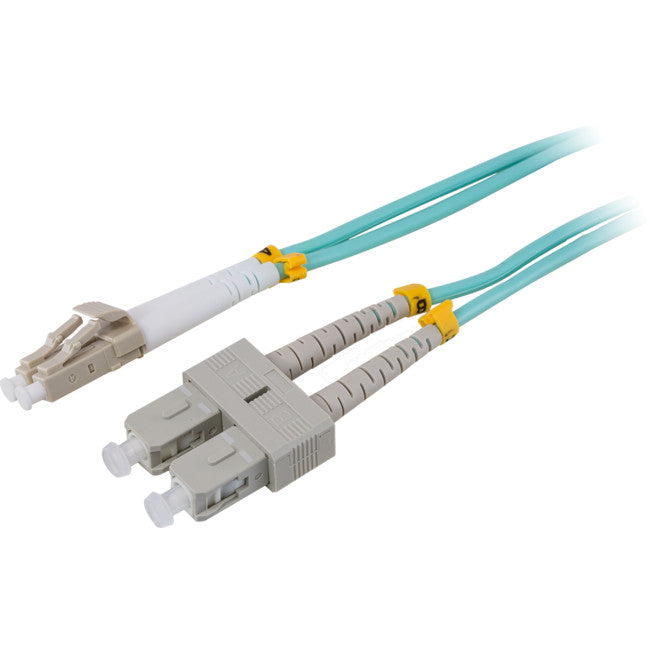

FP7770 2M FIBRE PATCH LEAD LC-SC OD 2.0MM DUPLEX 50/125 (OM4) PRO2

$13.95

Features

OM4 Laser-Optimized Multimode Fiber (LOMMF) "Aqua" cables, is used for 10/100Gb Ethernet applications. These new technology, 50/125um, LC/SC OM4 Fiber Optic Patch Cord, provide nearly three times the bandwidth over conventional 62.5um multimode fiber, with performance rivaling that of Singlemode cable, at a much reduced cost. LOMMF cable allows 10/100Gb serial transmission over extended distances in the 850nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution.
LOMMF is ideally suited for LAN's, SAN's, and high-speed parallel interconnects for head-ends, central offices, and data centers.

Designed for 10/40/100-Giga Ethernet applications, OM4 Rated
10//40/100gb Ethernet speed to 300 meters @850nm
Use with VCSEL and LED laser light sources
High-Speed, High-Bandwidth, Low-Cost
Backward compatible with legacy LAN's
Ideal for Fibre Channel (SAN) applications
IEEE 802.3ae and TIA LOMMF compliant

Specifications

Type	Multi-mode 50/125 OM4
Insertionloss	≤0.3dB
Return Loss	≥35 dB
Network Speed	10Gbps / 40Gbps / 100Gbps
Repeatability	≤0.1dB
Durability	≥1000matings
OperatingTemperature	-40°Cto +80°C
Tensile Strength(N)	≥90N(Φ3), ≥70N(Φ2)
