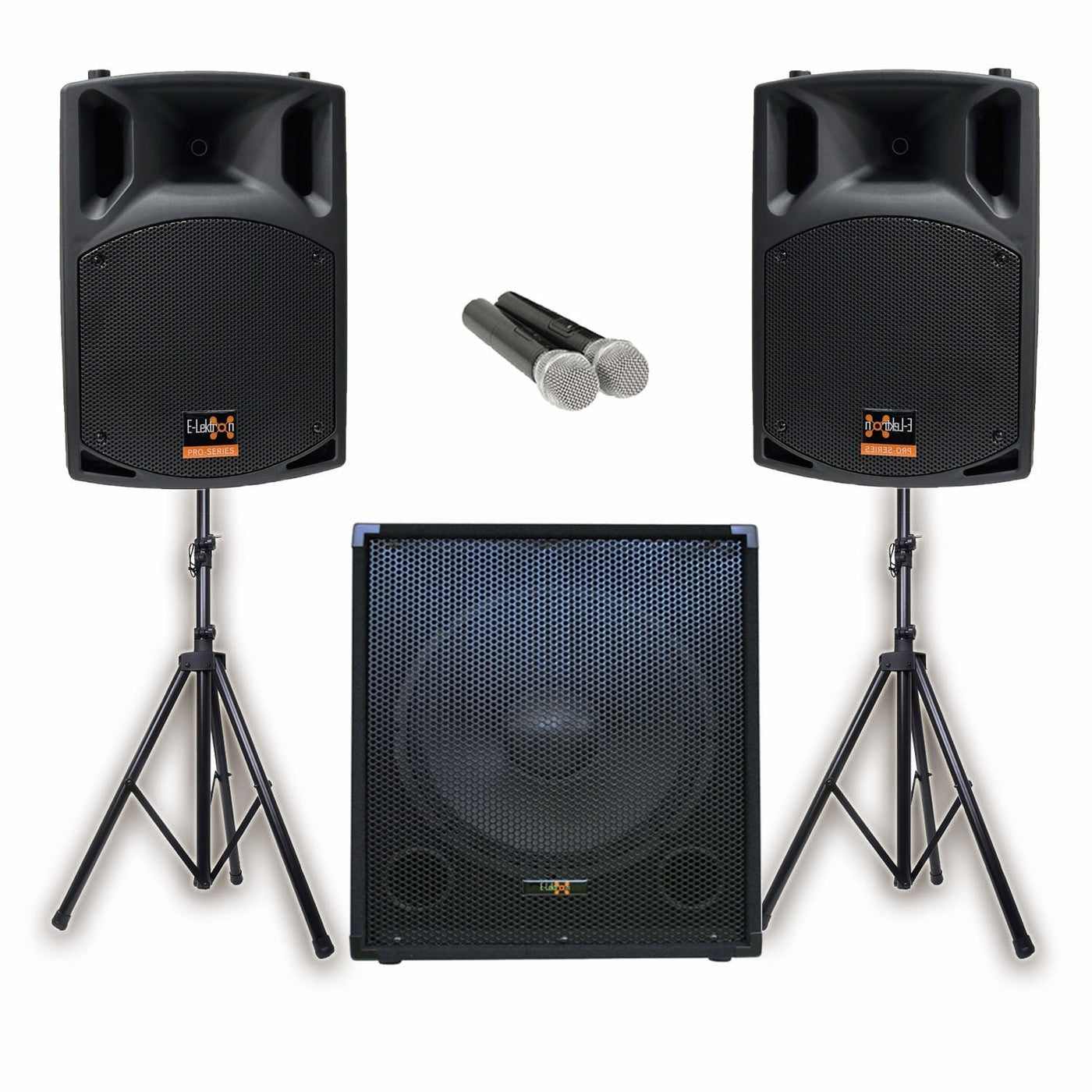

PA System Setup Guide for Beginners

Introduction

Setting up a PA system for the first time can feel daunting — there are cables, inputs, outputs, gain knobs, and EQ controls all demanding your attention at once. But once you understand the signal chain and follow a logical setup sequence, it becomes second nature. This step-by-step guide will walk you through everything you need to get your PA system up and running safely and sounding great.

Understanding the Signal Chain

Before touching a single cable, it helps to understand how audio flows through a PA system. The signal chain typically looks like this:

Source (microphone / instrument / playback device) → Mixer → Amplifier → Speakers

If you're using powered (active) speakers, the amplifier is built in, so the chain simplifies to:

Source → Mixer → Powered Speakers

Every connection you make should follow this flow. Audio always travels from source to output — never backwards.

What You'll Need

• Mixer (analogue or digital)
• Powered speakers (or passive speakers + power amplifier)
• XLR cables (for signal connections)
• Speakon or speaker cables (if using passive speakers)
• Microphones, DI boxes, or instrument cables as needed
• Speaker stands (recommended for most applications)

Step-by-Step Setup

Step 1: Position Your Speakers

Place your main speakers to the left and right of the stage or performance area, angled slightly inward toward the audience. Elevating speakers on stands improves coverage and reduces feedback risk by keeping the speakers in front of (not behind) any microphones on stage. Make sure stands are fully locked and rated for the weight of your speakers.

Step 2: Connect Speakers to the Mixer

Run an XLR cable from the mixer's main output (Left and Right) to the input of each powered speaker. If you're using passive speakers, run XLR from the mixer to your power amplifier inputs, then use Speakon cables from the amplifier outputs to the speakers.

Tip: Keep all volume faders and gain knobs turned fully down before making any connections.

Step 3: Connect Your Sources

Plug microphones, instruments, or playback devices into the mixer's input channels using the appropriate cables:

• Microphones: XLR cable into a mic input channel. Enable phantom power (+48V) if using a condenser microphone.
• Instruments (guitar, bass, keyboard): Use a DI box to convert the instrument signal to a balanced XLR signal, or plug directly into a Hi-Z instrument input if your mixer has one.
• Playback devices (laptop, phone, media player): Use a 3.5mm to dual RCA or dual XLR cable into a stereo line input channel.

Step 4: Set Your Gain Structure

Gain structure is the most important — and most overlooked — part of PA setup. Done correctly, it ensures a clean, noise-free signal throughout the system.

1. With the channel fader at unity (0dB), have your source produce its loudest expected signal.
2. Slowly increase the channel gain (trim) until the channel meter peaks around 0dB — occasionally touching the yellow, never hitting the red.
3. Repeat for each input channel.
4. Bring the master fader to unity (0dB).
5. Slowly raise the volume on your powered speakers until you reach the desired listening level.

Step 5: Apply EQ

Once your gain is set, use the channel EQ to shape the tone of each source. A few starting points:

• Vocals: High-pass filter around 100Hz to remove low-end rumble. Boost presence around 3–5kHz for clarity.
• Kick drum: Boost around 60–80Hz for punch, cut around 300–500Hz to reduce muddiness.
• Acoustic guitar: High-pass around 80Hz, gentle boost around 2–3kHz for definition.

Step 6: Check for Feedback

Slowly bring up the master volume. If you hear a ringing or squealing sound, that's feedback — the microphone is picking up sound from the speakers and creating a loop. To fix it:

• Reposition the microphone or speakers so the mic is not pointing at the speakers.
• Reduce the gain on the offending channel.
• Use a graphic EQ to identify and cut the feedback frequency.

Step 7: Do a Full Sound Check

With everything connected and levels set, run through each input at performance volume. Listen for any distortion, noise, or imbalance between channels and adjust accordingly. Walk around the room to check coverage and make sure the sound is even throughout the audience area.

Common Mistakes to Avoid

• Turning up the master before setting gain: Always set gain first, then bring up the master.
• Plugging in with volumes up: Always connect cables with everything turned down to avoid damaging speakers with pops and transients.
• Speakers behind microphones: This is the most common cause of feedback. Keep speakers in front of and angled away from any open microphones.
• Ignoring the high-pass filter: Enabling the HPF on vocal and instrument channels cleans up low-end mud and gives your mix more headroom.
